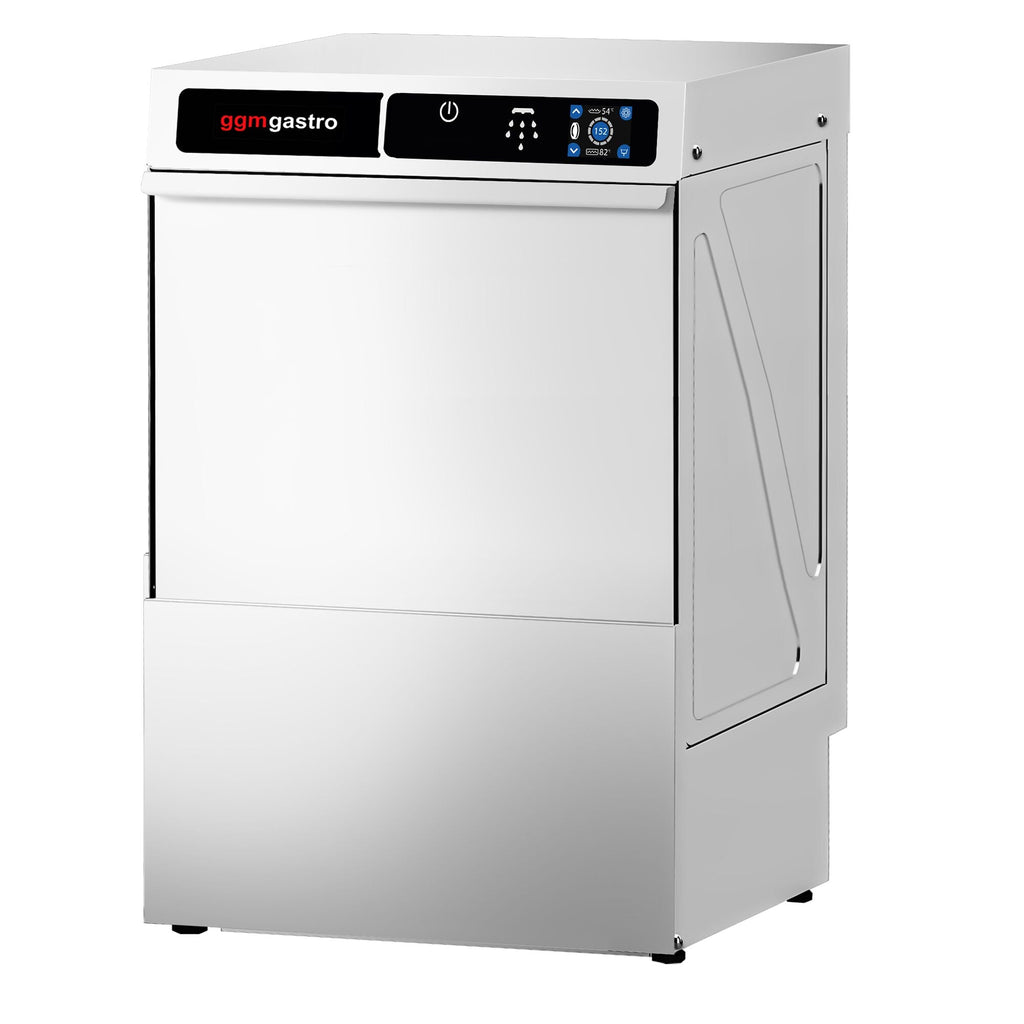

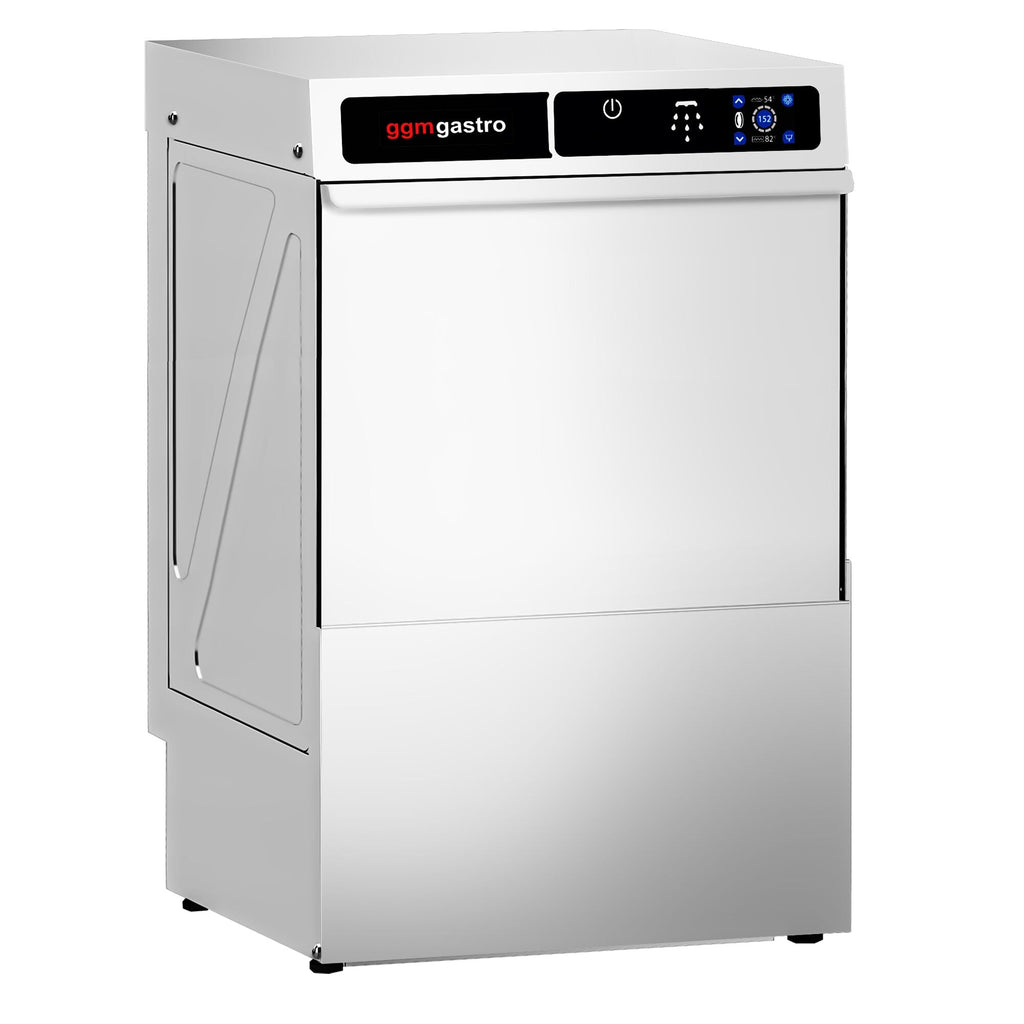

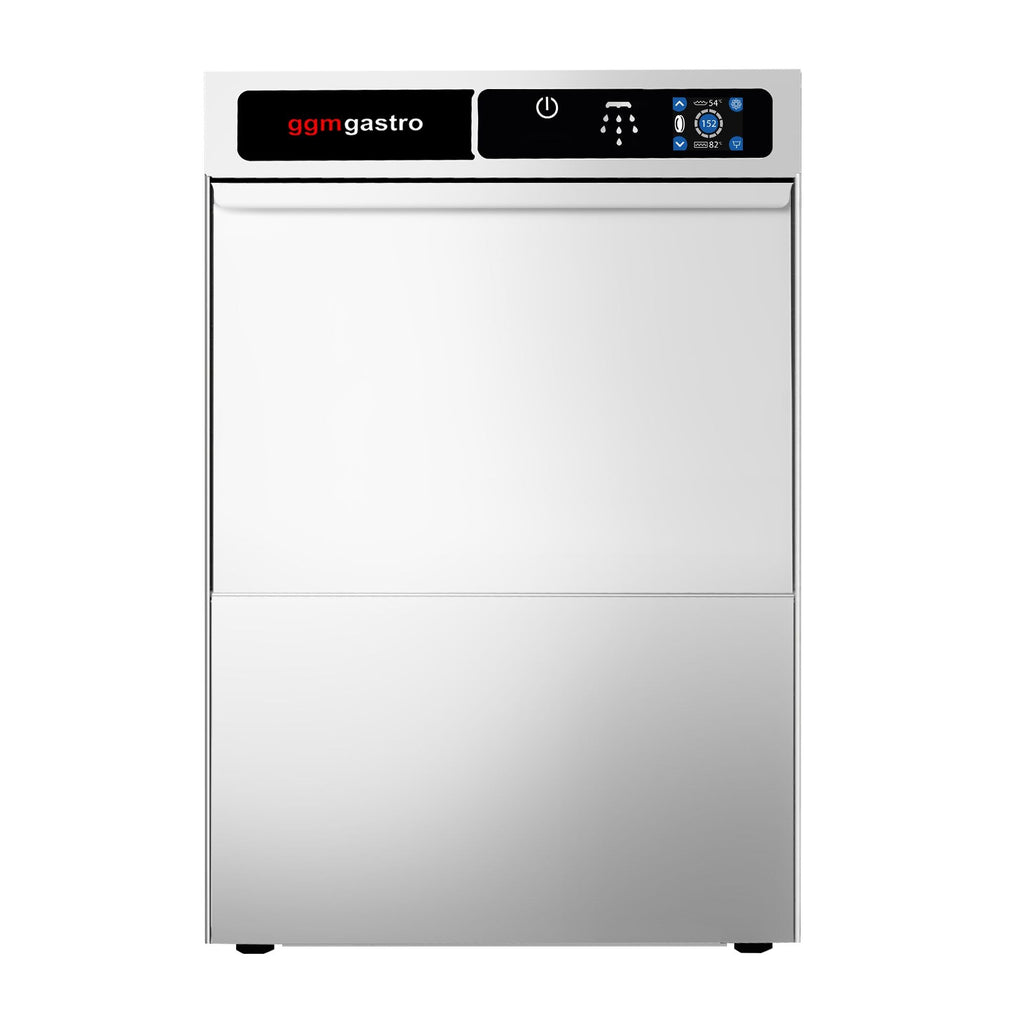

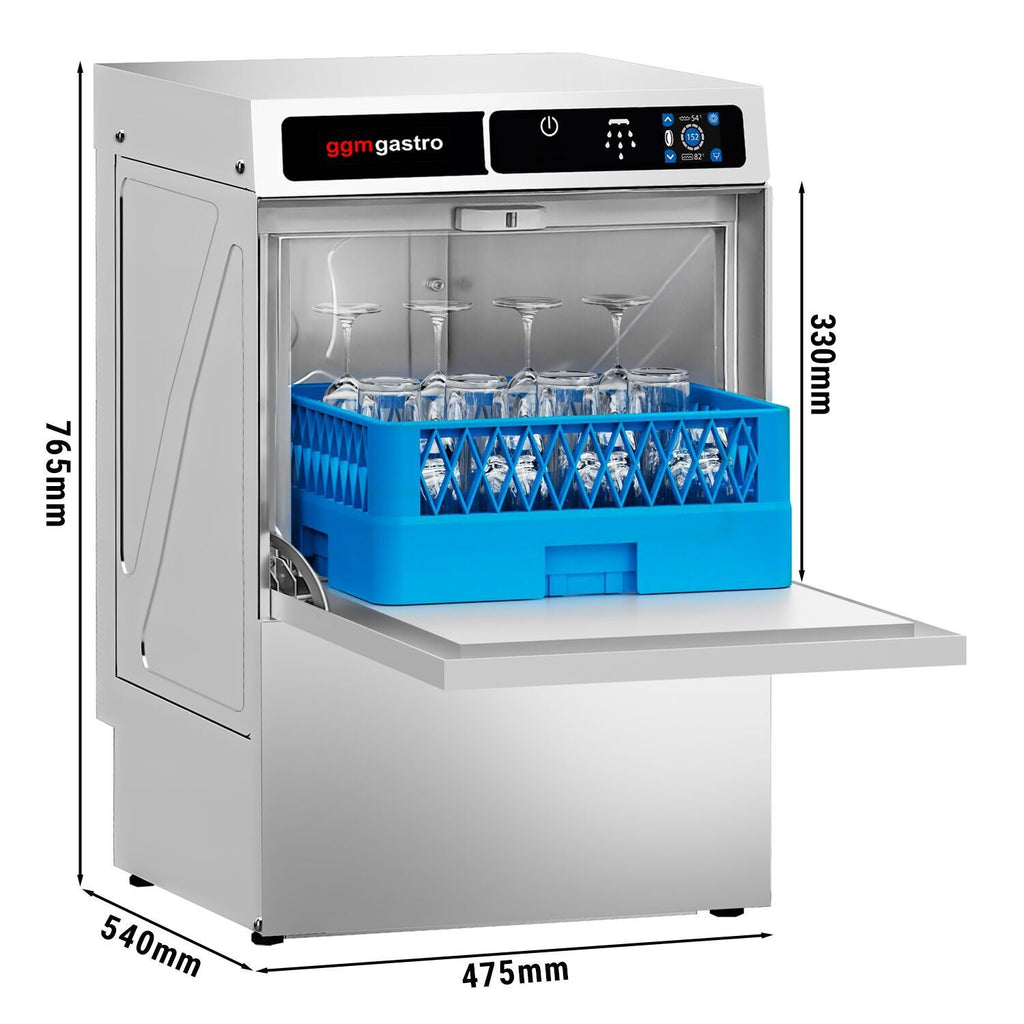

Cup washing machine- 3,30 kW - detergent, shine & evacuation pump

Product Advantages

• Automatic detergent supply

• Automatic polishing feed

• High cleaning power

Design

• Evacuation pumpcup washing machine

• Sub -stand device

• Detergent pump

• Digital control panel

• Polypropylene washing arms

• Safety System Opening Door

• Adjustable feet for height optimization

• Easy start: press a single button to fill and heat the water in the boiler tank

• Maximum sound level 70 dB

Quality

• High quality stainless steel body

• IPX5 Fully Sealing Protection to Provide Water Protection

• Digitally controlled rinsing and washing temperature for efficient washing

• Electrical components and wiring according to international standards and safe fingers arrangements

Rinsing process

• Easy use

• 3 program

• Washing Program I: Washing time 107 seconds, 33 basket / hour

• Rinsing Program II: Rinsing time 137 seconds, 26 baskets/hour

• Rinsing Program III: Rinsing time 197 seconds, 18 basket/hour

Technique

• Electric detergent supply

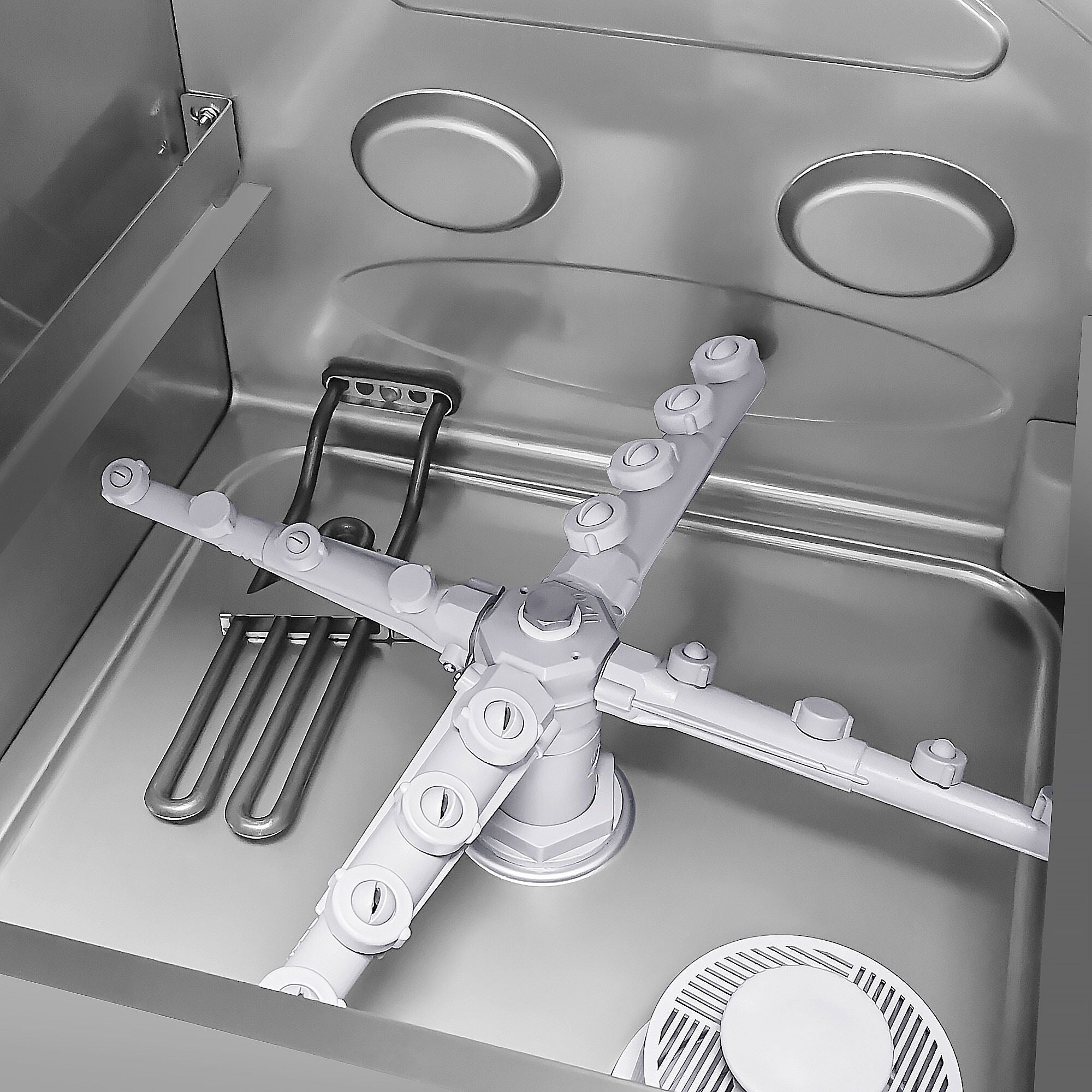

• Rotating, non -clogged washing and rinsing arms

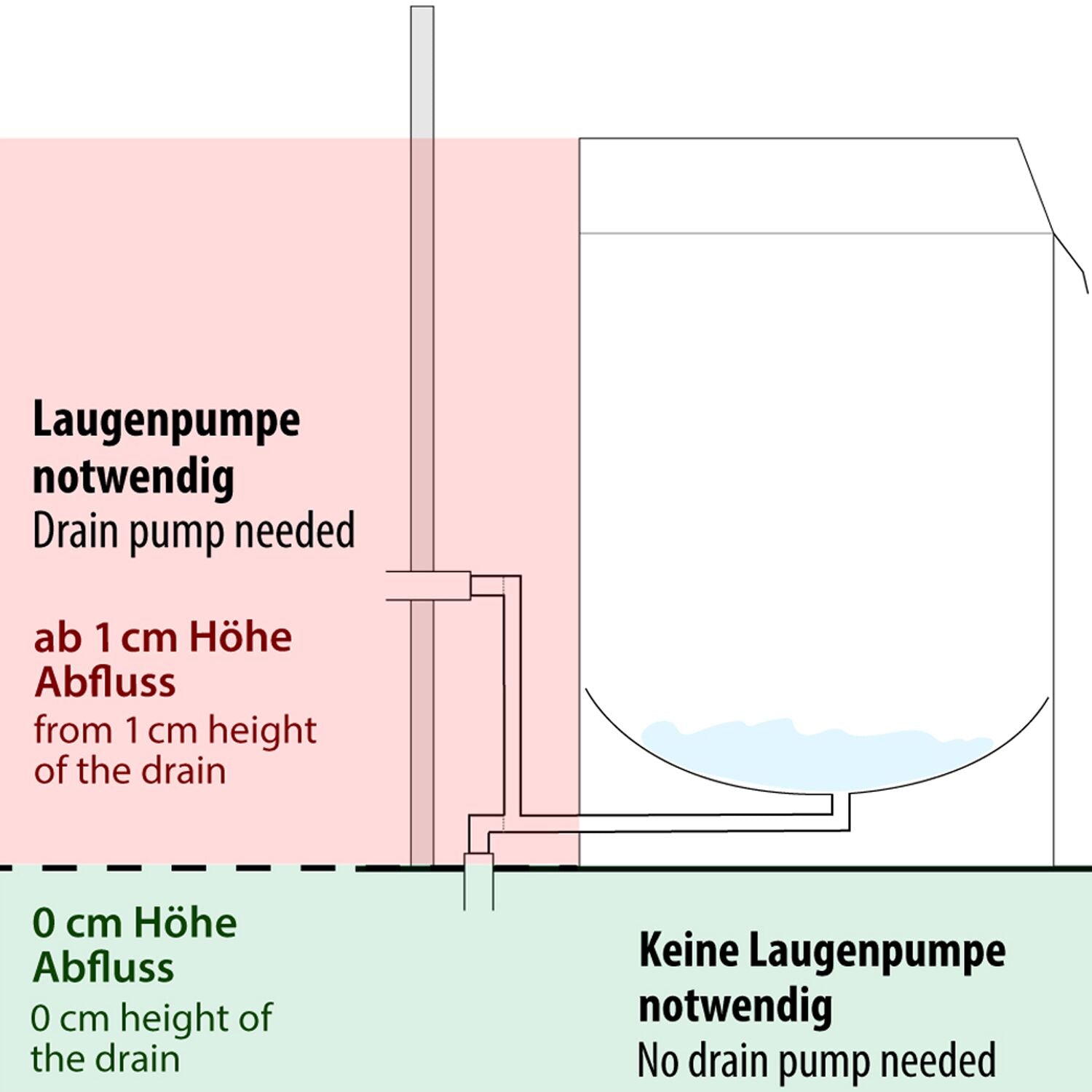

• The drainage pump pumps the waste water connection over the difference in height difference.

Connection

• Strength:3,30 kW

• Electrical connection:230V / 1N/PE / 50 Hz

Dimensions

• External Dimensions G x d x y:475 mm x 540 mm x 765 mm

Delivery Scope

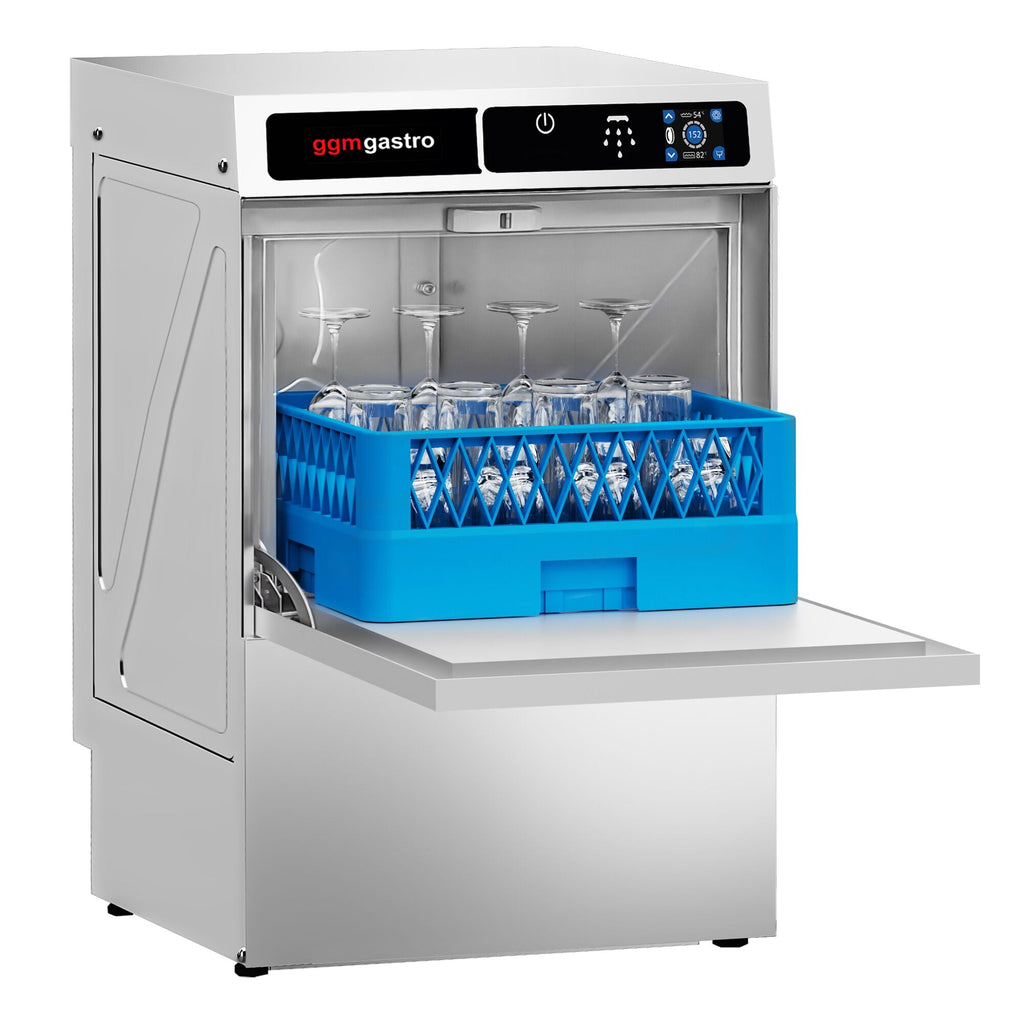

• 1 cup basket with cutlery and cup holder

Directives

• It is produced in accordance with hygiene and safety rules.

• Produced in accordance with CE standards

Notes

• You can find information about network voltage in the user manual.

• Hot water connection should be used to shorten the heating time. The maximum temperature of 50 ° C should not be exceeded.

• Suitable for chlorine -free cleaners.

• To provide proper rinsing, we recommend that you regularly purify the device and components from lime!

• If you have tied a lime solvent in the upward direction, remember that the cartridge should be renewed after approximately 1500 - 2000 L water flow. The real maximum flow rate depends on water hardness.

• You can find detailed instructions under the "Download" and "Video" tabs.
