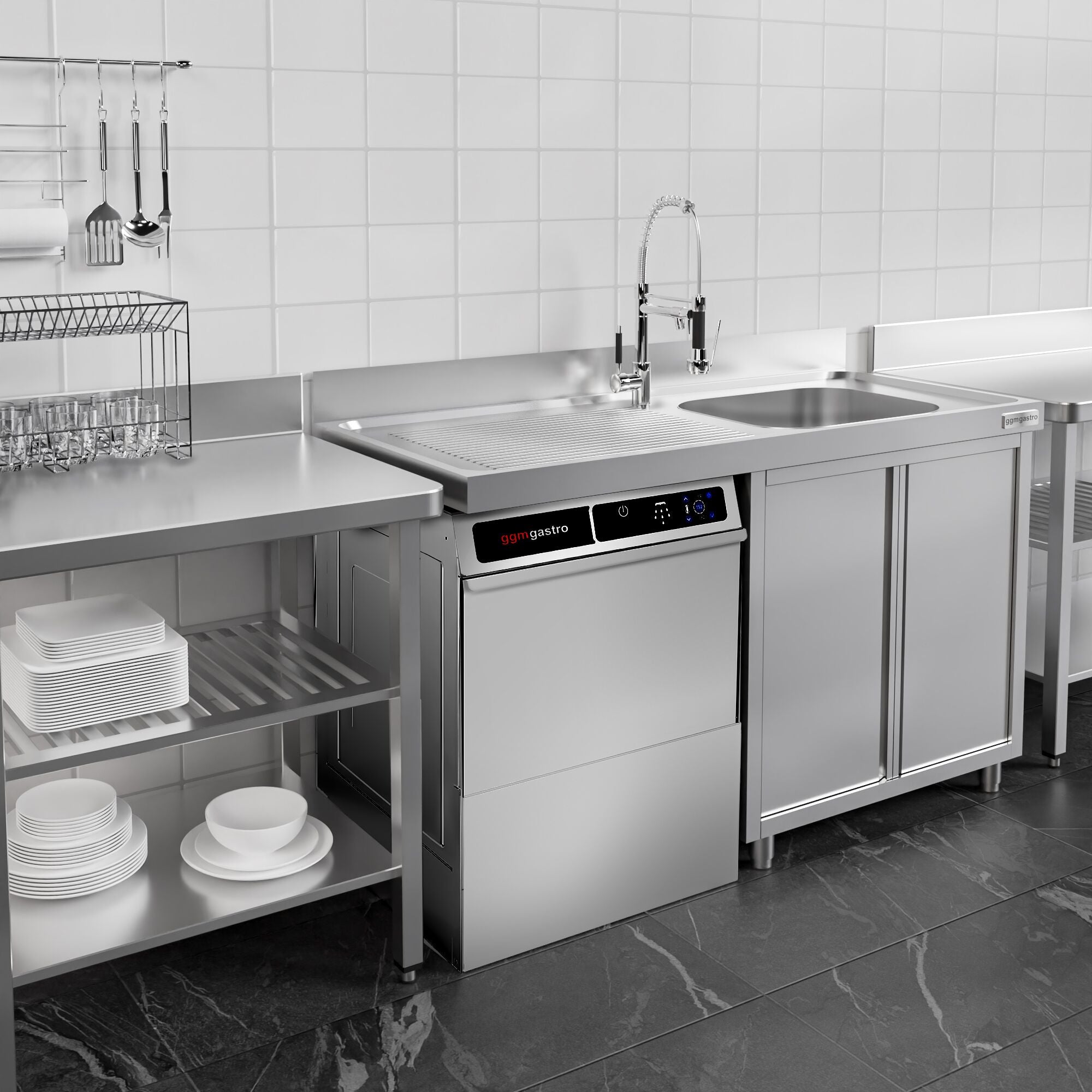

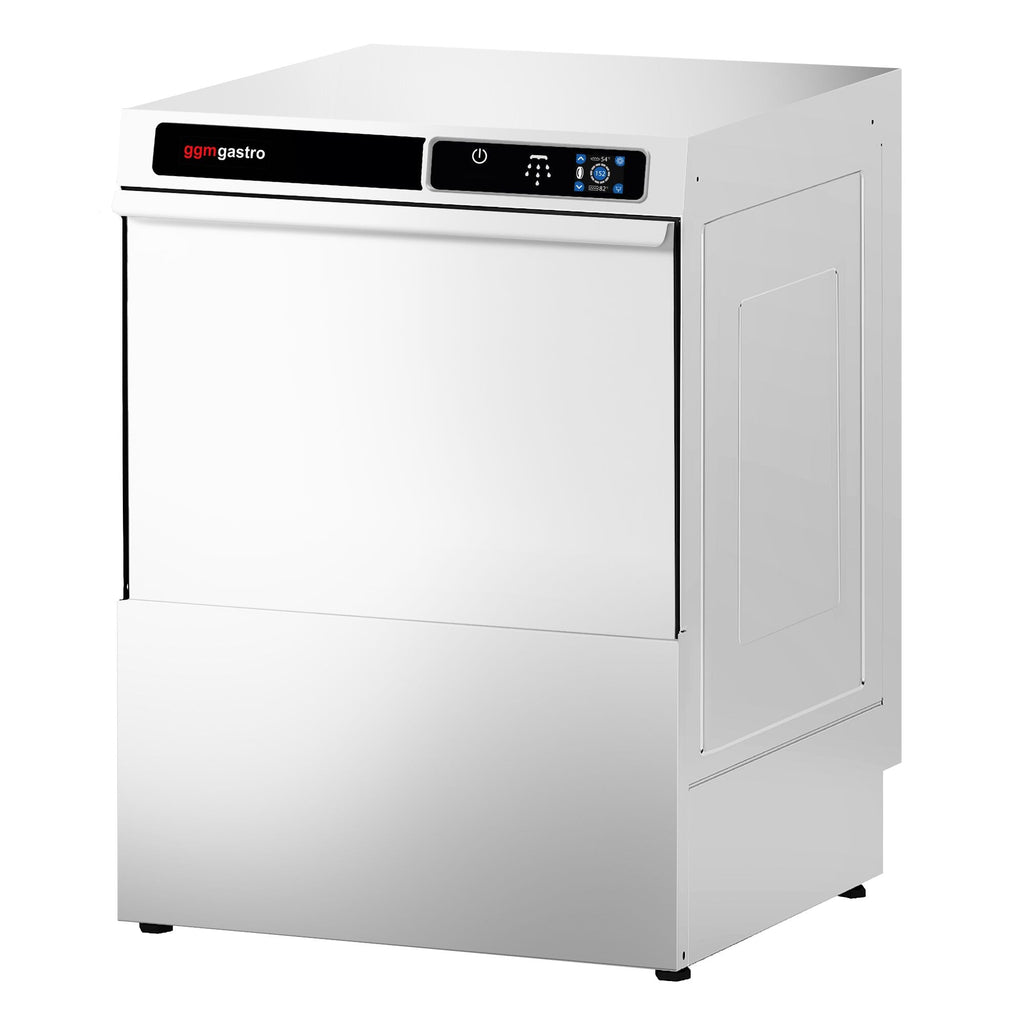

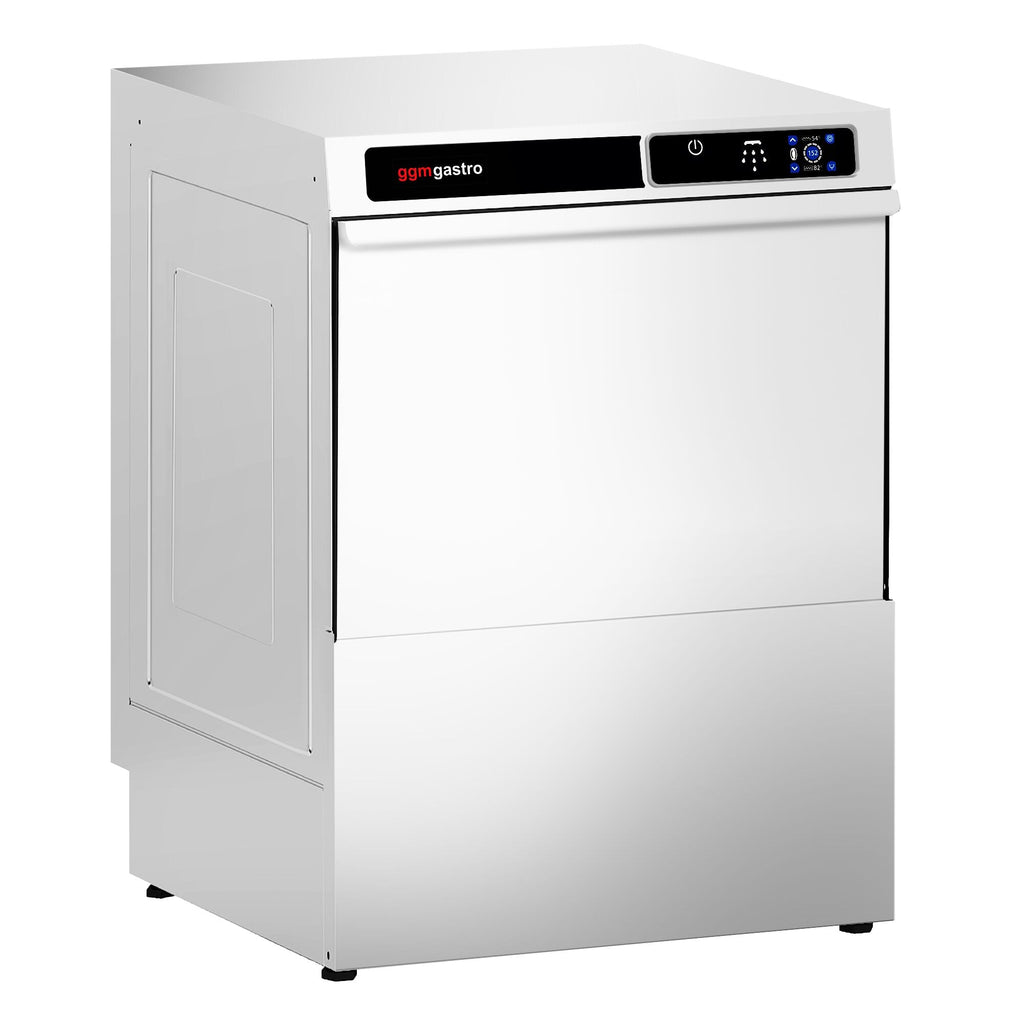

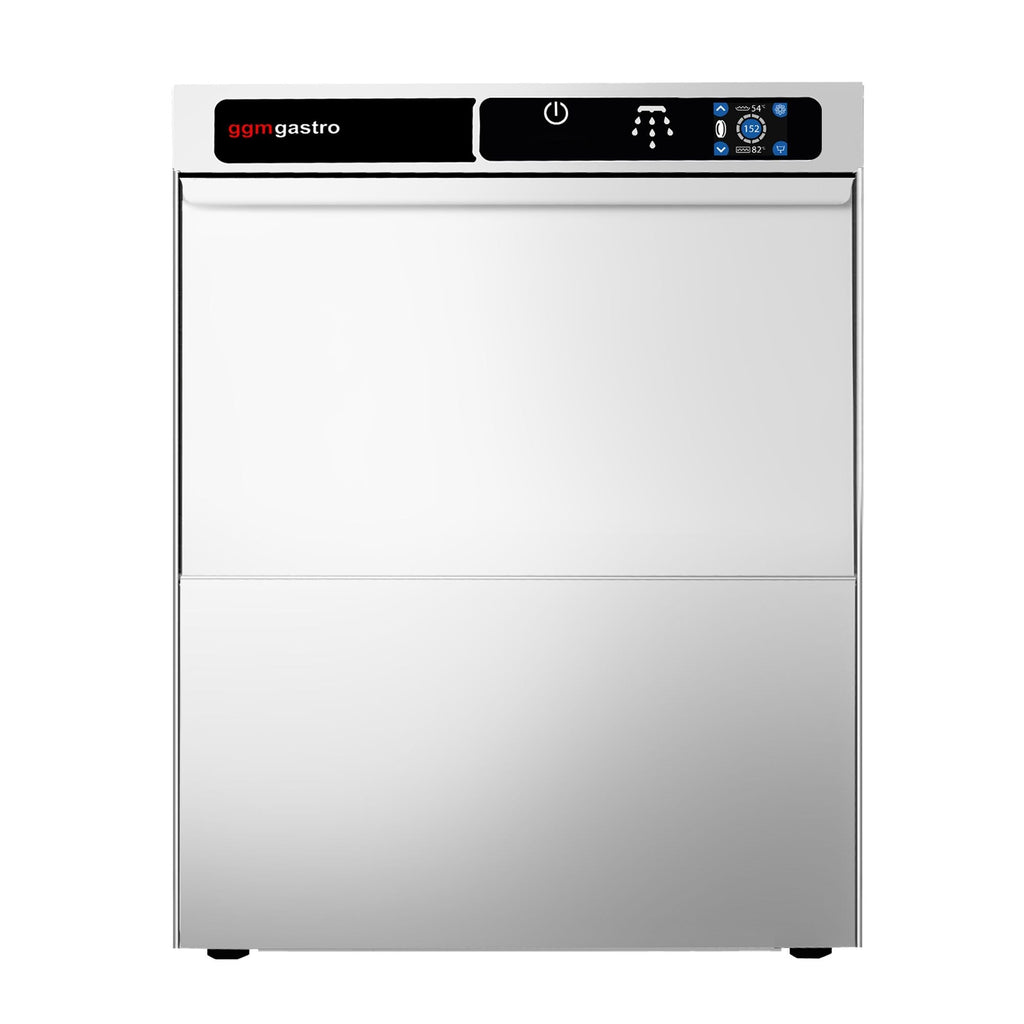

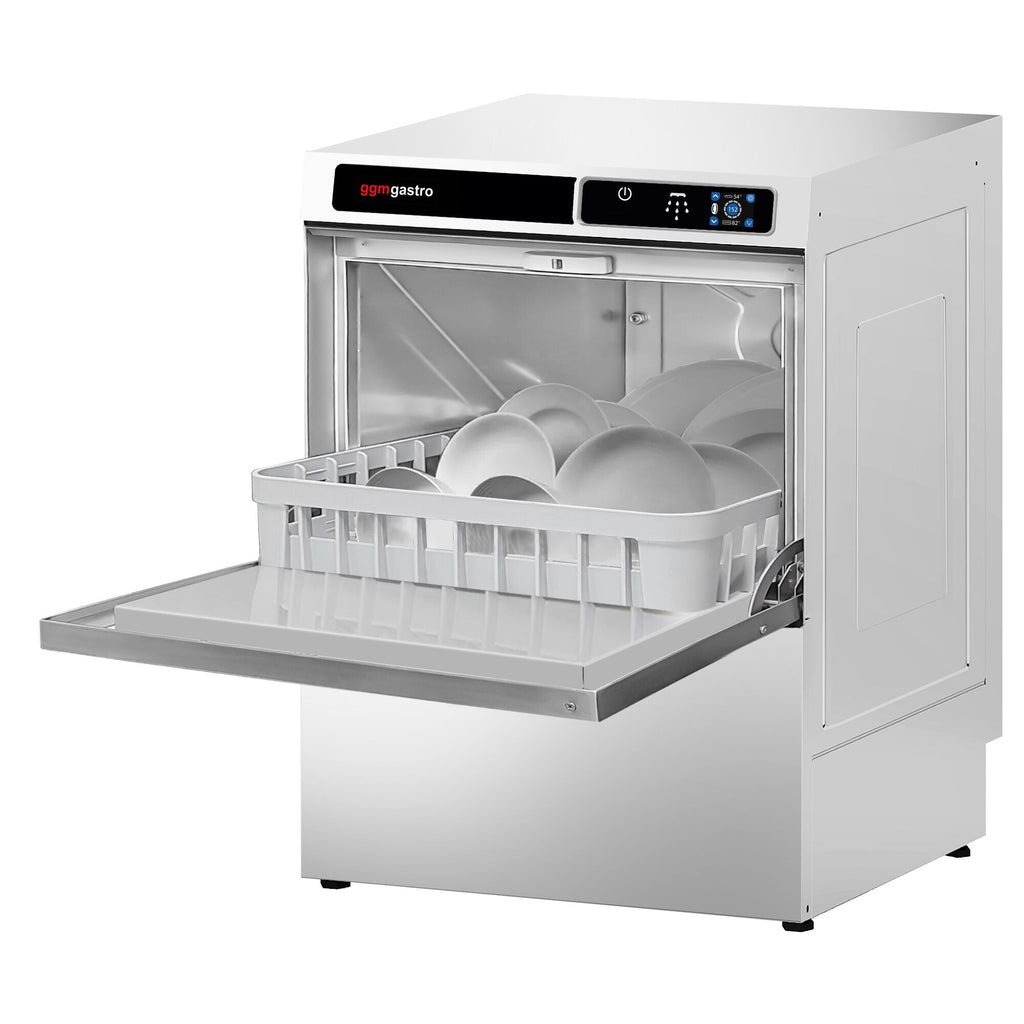

Double -walled dishwasher - 3.6 kW - detergent, brightener & evacuation pump

Product Advantages

• An external lime solvent is not required thanks to the internal lime dissolution system

• Automatic detergent supply

• Automatic polishing feed

• High cleaning power

Design

• Evacuation pumpdishwasher

• Sub -stand device

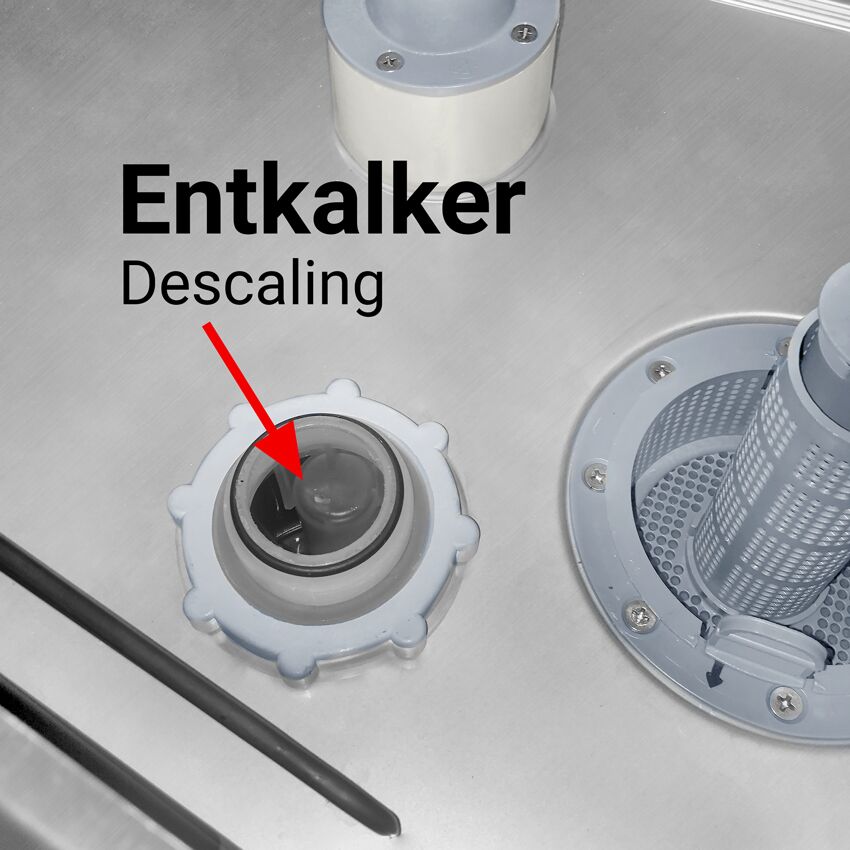

• Internal Lime Treatment

• Detergent pump

• Polisher

• Digital control panel

• Polypropylene washing arms

• Safety System Opening Door

• Adjustable feet for height optimization

• Easy start: press a single button to fill and heat the water in the boiler tank

• Maximum sound level75 dB

Quality

• High quality stainless steel body

• IPX5 Fully Sealing Protection to Provide Water Protection

• Digitally controlled rinsing and washing temperature for efficient washing

• Electrical components and wiring according to international standards and safe fingers arrangements

Rinsing process

• Easy use

• 5 program

• Washing Program I: Washing time 102 seconds, 35 basket / hour

• Rinsing Program II: Rinsing time is 132 seconds, 27 baskets/hour

• Rinsing Program III: Rinsing time 152 seconds, 23 basket/hour

• Rinsing Program IV: Rinsing time 172 seconds, 20 baskets/ hour

• Rinse Program V: Rinse Time 192 seconds, 18 baskets/hour

Technique

• Electric detergent supply

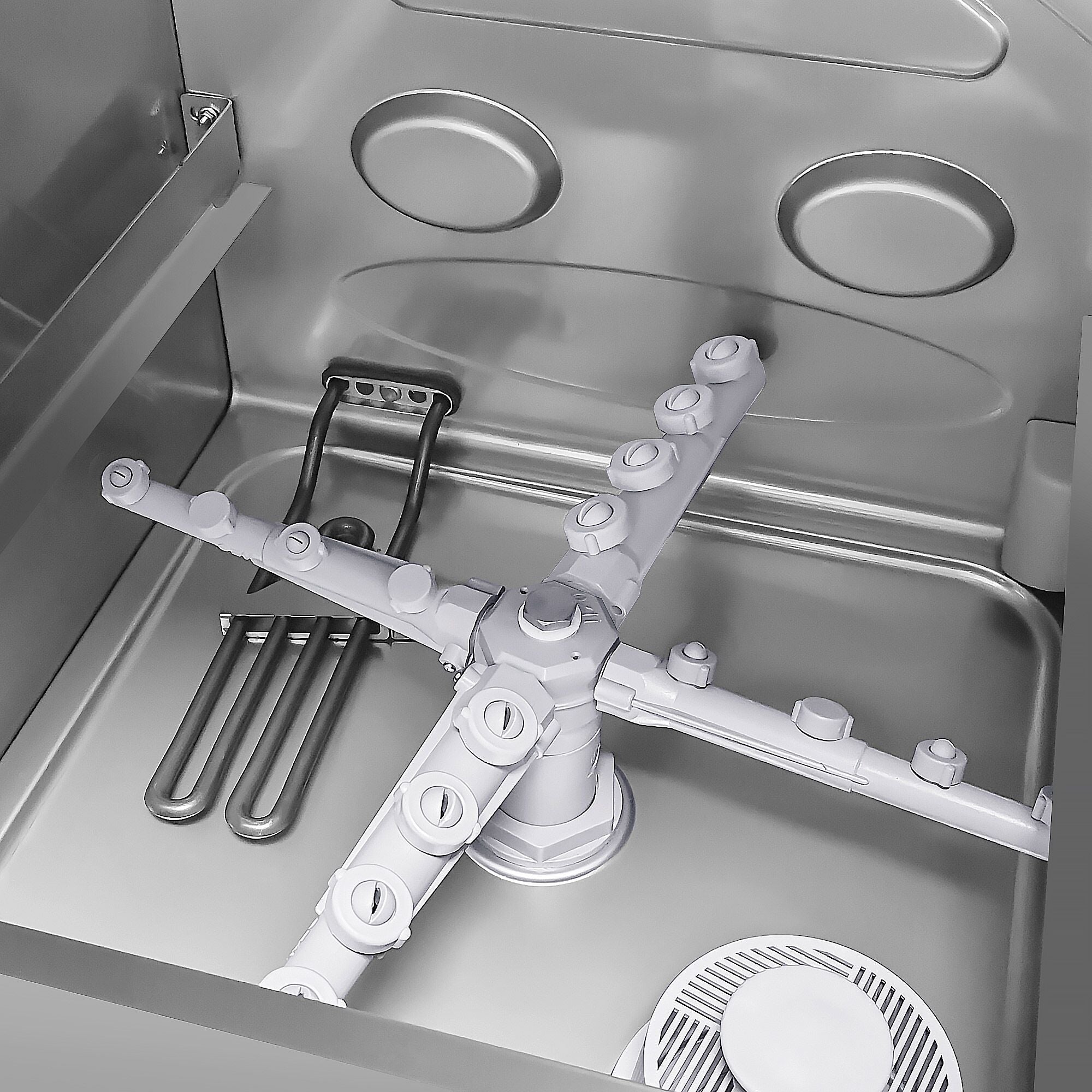

• Rotating, non -clogged washing and rinsing arms

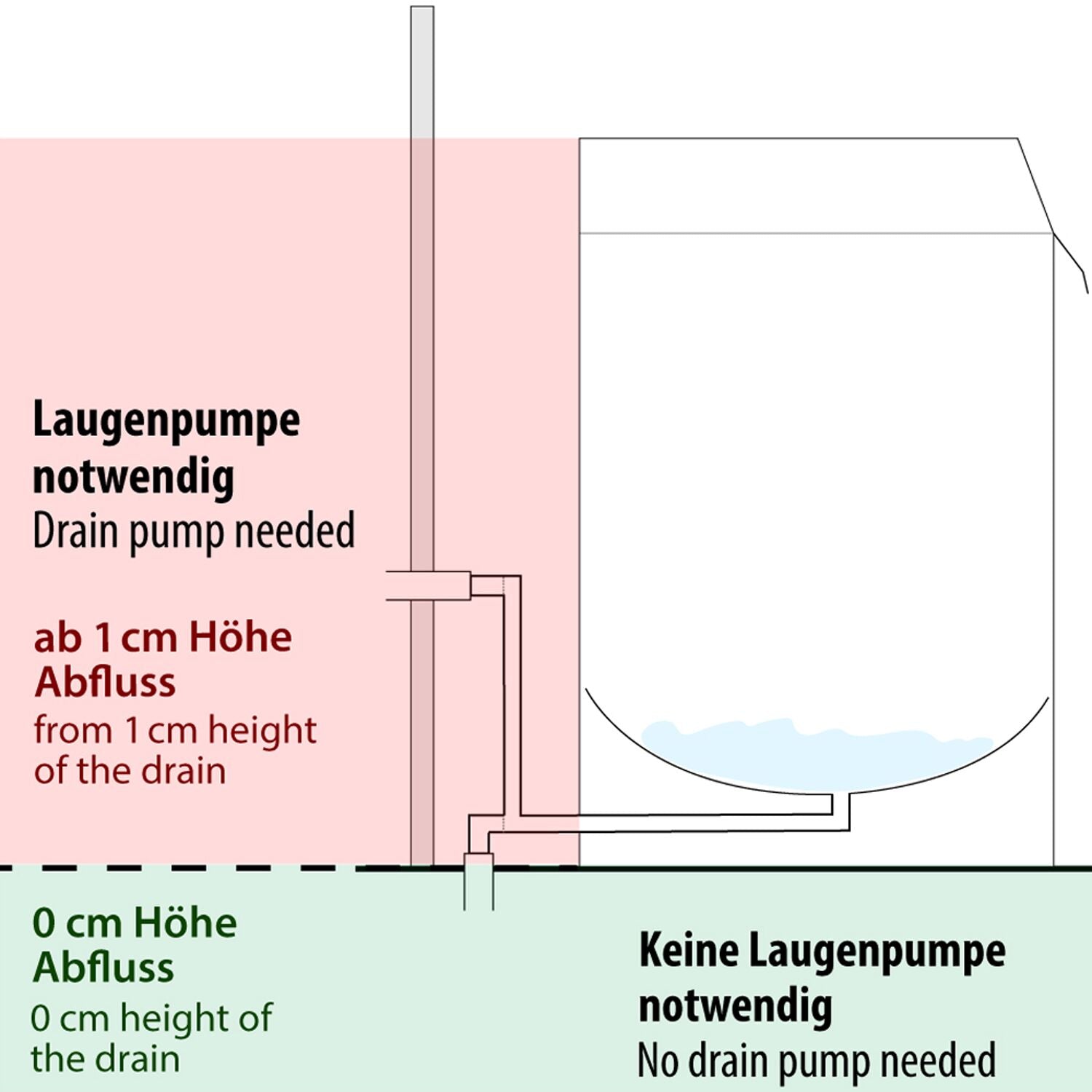

• The drainage pump pumps the waste water connection over the difference in height difference.

Connection

• Strength:3,60 kW

• Electrical connection:230V / 1N/PE / 50 Hz

Dimensions

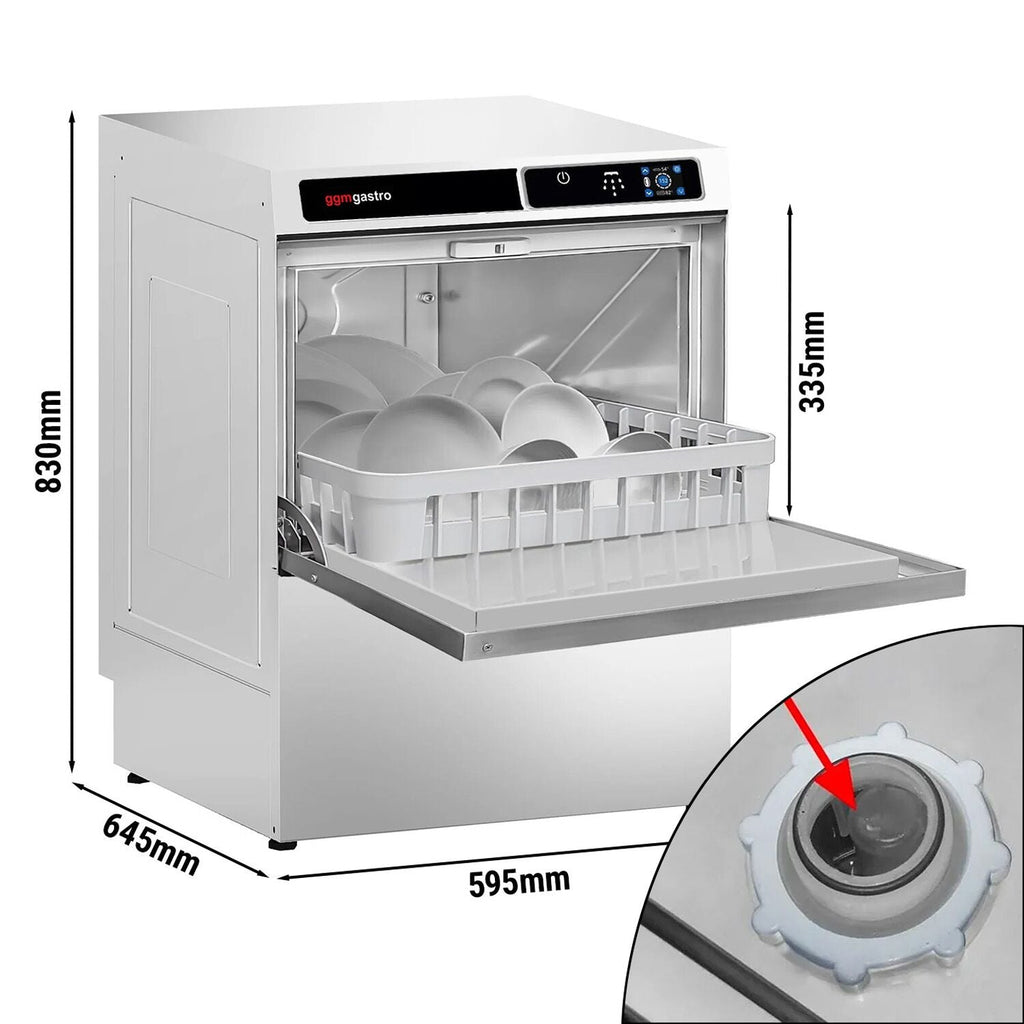

• External Dimensions G x d x y:595 mm x 645 mm x 830 mm

Delivery Scope

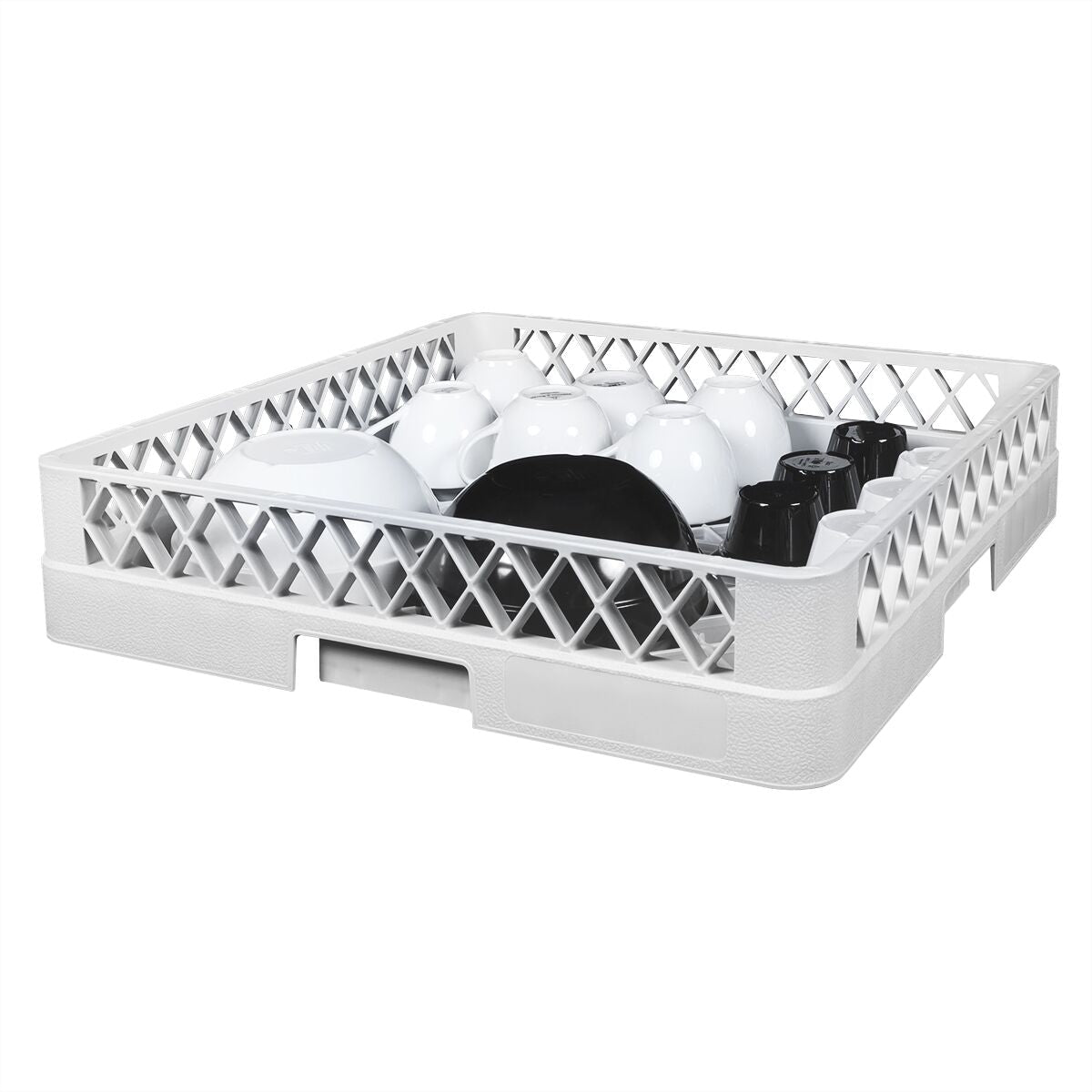

• 1 universal basket

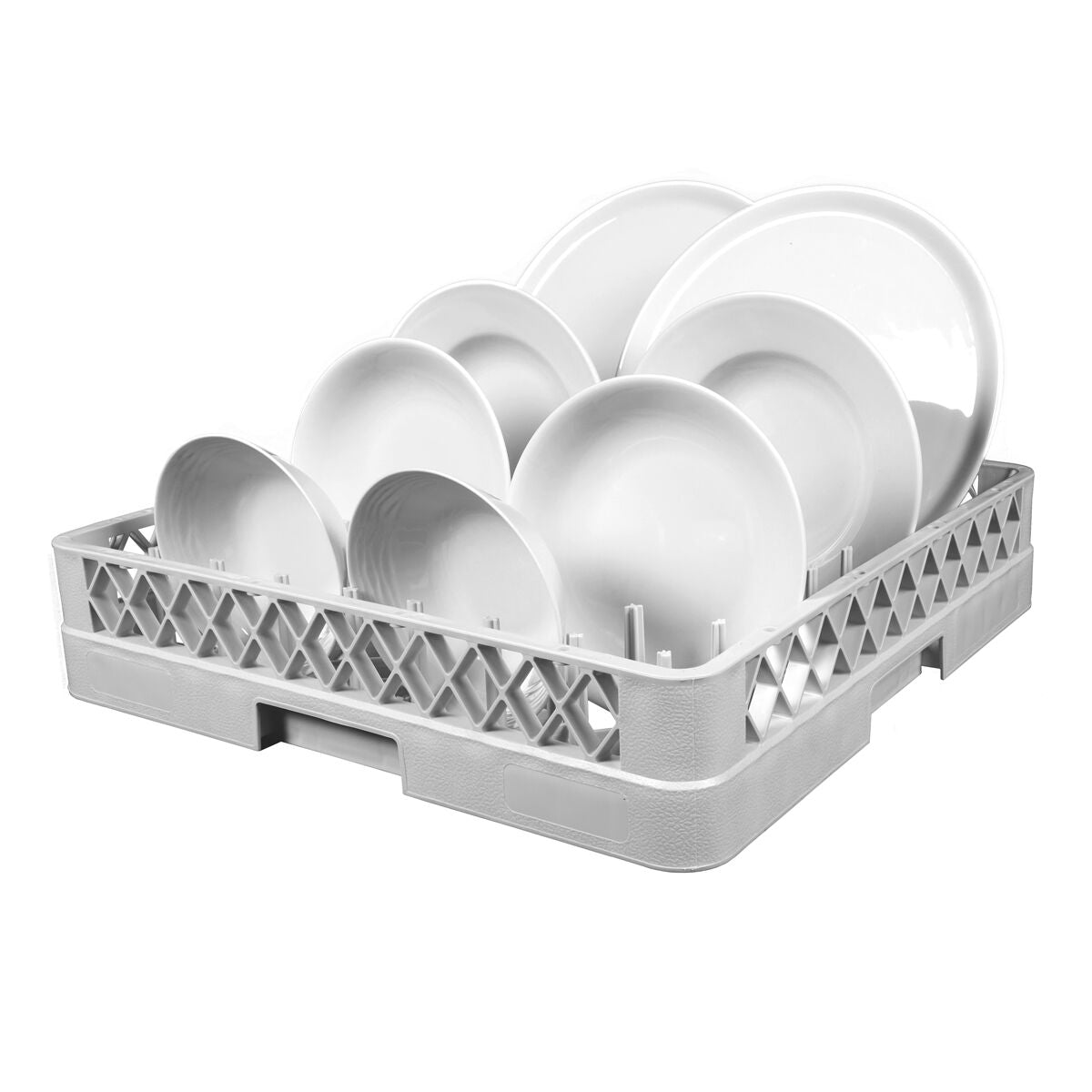

• 1 dishwashing basket

• 1 fork knife set basket

Directives

• It is produced in accordance with hygiene and safety rules.

• Produced in accordance with CE standards

Notes

• You can find information about network voltage in the user manual.

• Hot water connection should be used to shorten the heating time. The maximum temperature of 50 ° C should not be exceeded.

• Suitable for chlorine -free cleaners.

• To provide proper rinsing, we recommend that you regularly purify the device and components from lime!

• You can find detailed instructions under the "Download" and "Video" tabs.
