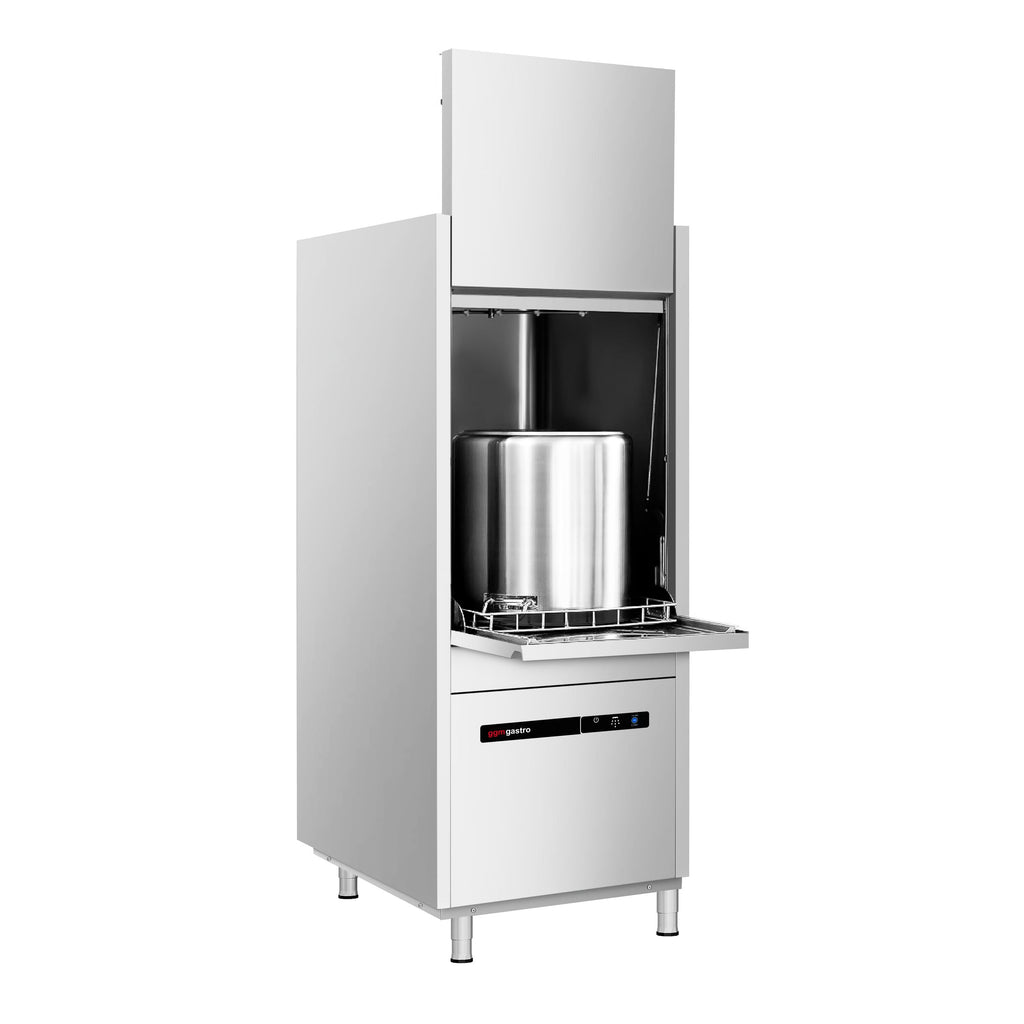

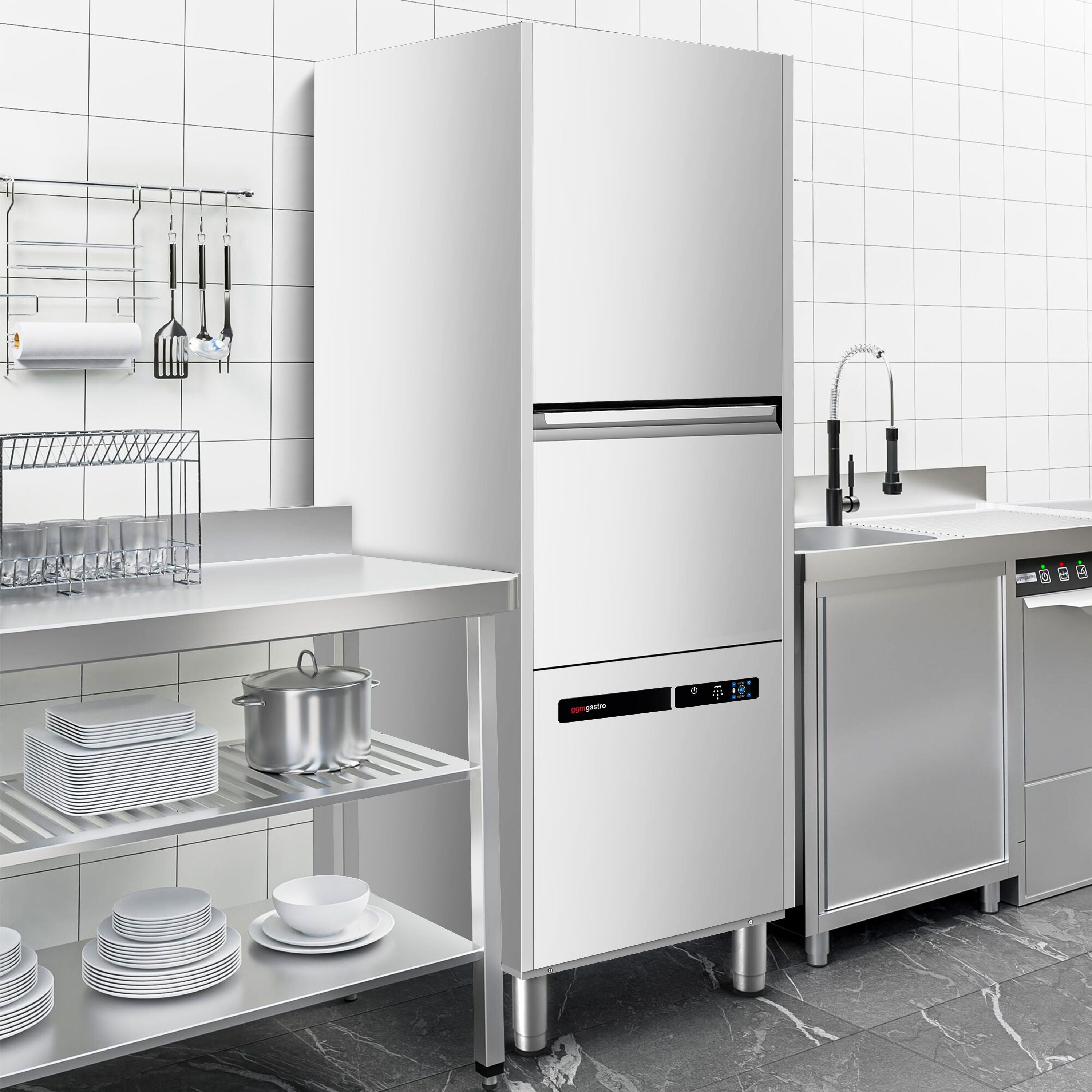

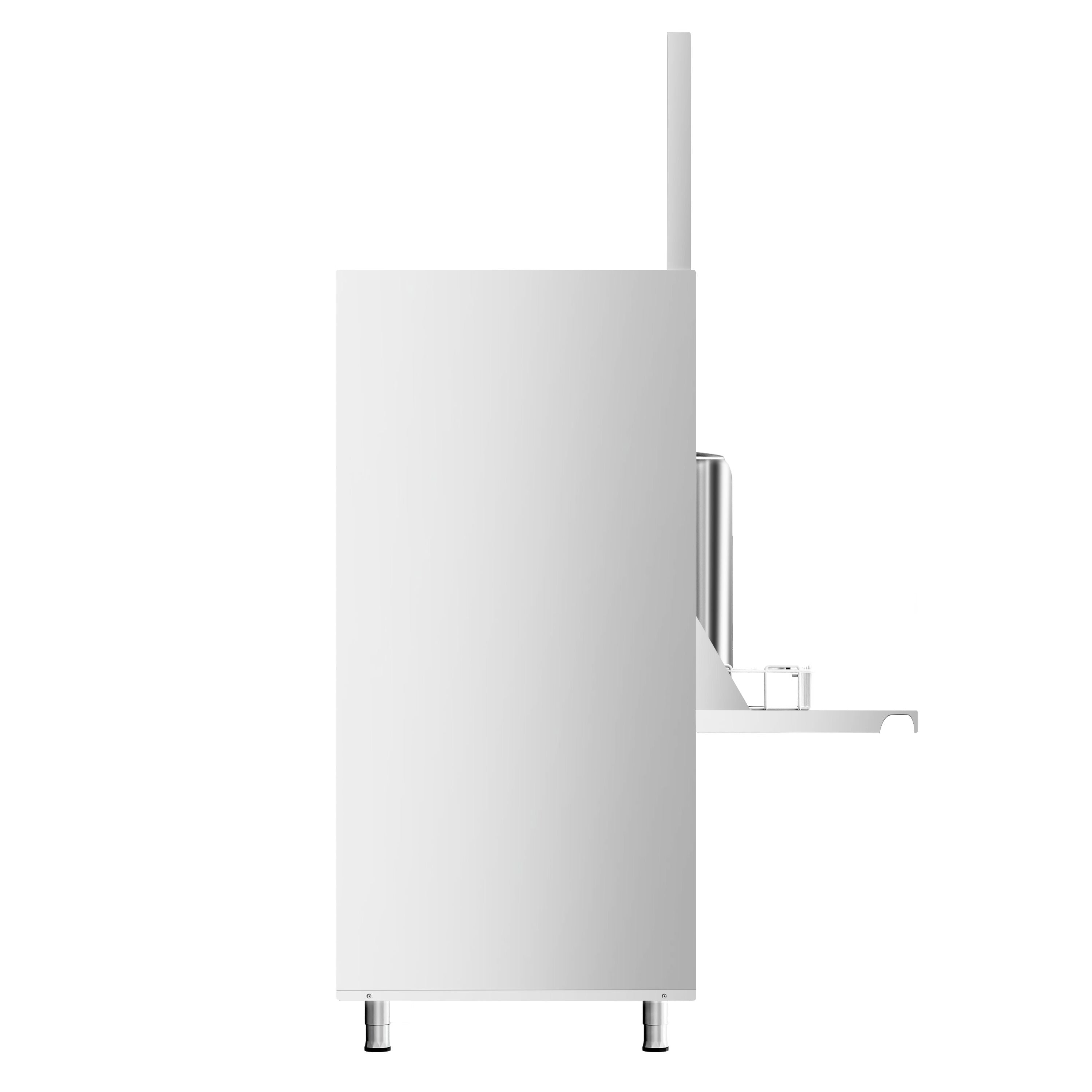

Dual Wedding Cookware Washing Machine - 16.7 kW - with detergent and evacuation pump

Design

• Dual -walled container washer

• Stand device

• Detergent pump

• With drainage pump

• Maxium is suitable up to 2/1 gn

• 2 propellers for effective cleaning

• Rinsing tap

• Thermostat controlled rinsing and washing temperature for efficient rinsing

• Irreversible valve system

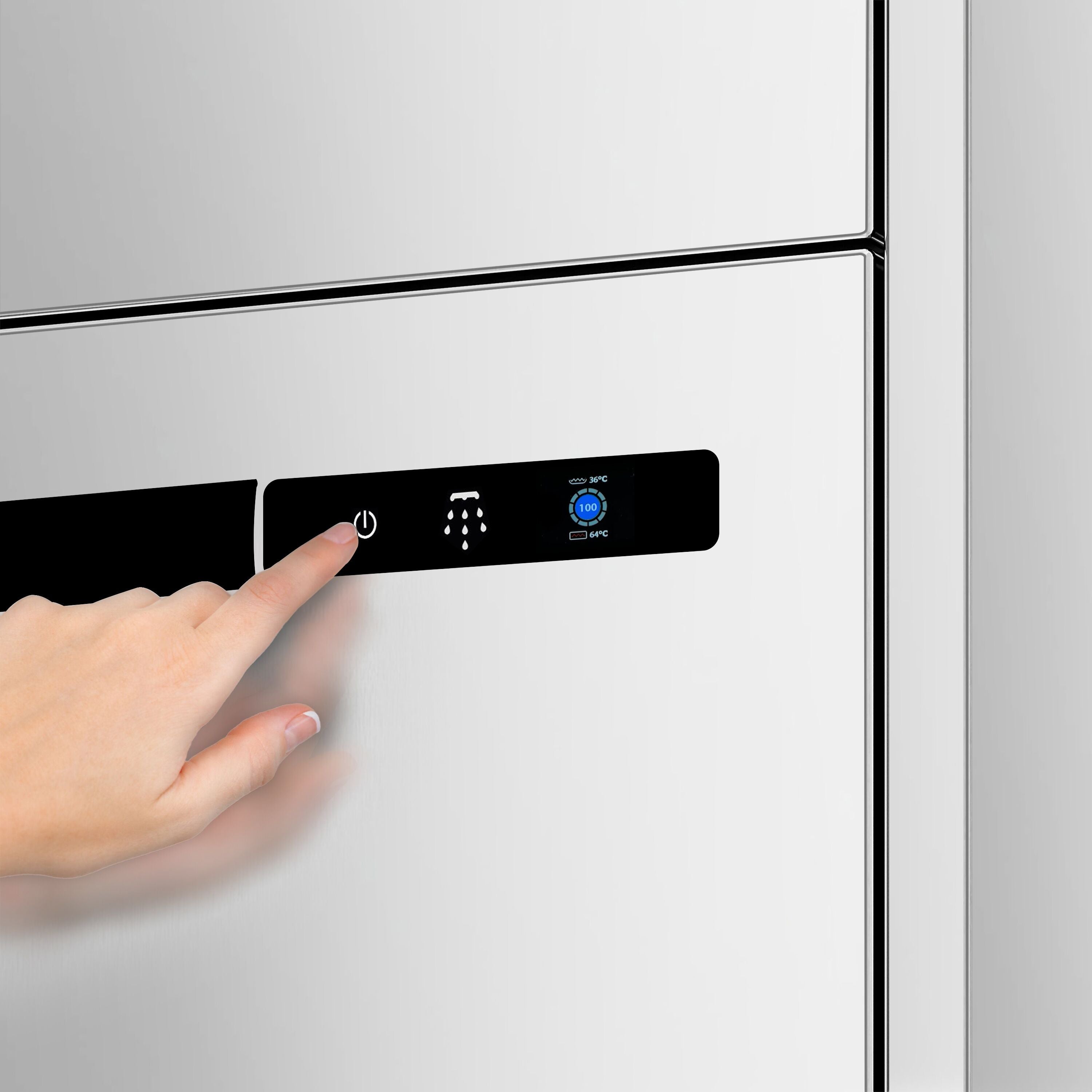

• Electronic Control Panel with LCD Screen

• Height adjustable feet

• IPX5 IPX5 is completely sealing to provide water protection

• All internal components can be easily removed for cleaning

Quality

• High qualityStainless Steel AISI 304body

Rinsing process

• 3 program

• Washing Program I: Washing time is 120 seconds, 30 baskets / hour

• Rinsing Program II: Rinsing time 360 seconds, 10 baskets/hour

• Rinsing Program III: Rinsing time 480 seconds, 7.5 baskets / hour

Technique

• Rotating, non -clogged washing and rinsing arms

• A pump for polishing and detergent

Connection

• Strength:16,70 kW

• Electrical connection:400V / 3N/PE / 50 Hz

Dimensions

• External Dimensions G x d x y:780 mm x 950 mm x 1.962 mm

Delivery Scope

• Hose for 1 water connection

• 1 Water Evacuation Hose

• 2 baskets

• The device is delivered without a plug!

Directives

• Product is suitable for European food standards

• It is produced in accordance with hygiene and safety rules.

• Produced in accordance with CE standards

Notes

• You can find information about network voltage in the user manual.

• Suitable for chlorine -free cleaners.

• Please note that the device can be operated with both hot water connection and cold water connection. The values of washing programs can only be guaranteed by hot water connection.

• To provide proper rinsing, we recommend that you regularly purify the device and components from lime!

• If you have connected a lime solvent in the upward direction, remember that the cartridge should be renewed after approximately 1500 - 2000 liters of water flow. The real maximum flow rate depends on water hardness.
