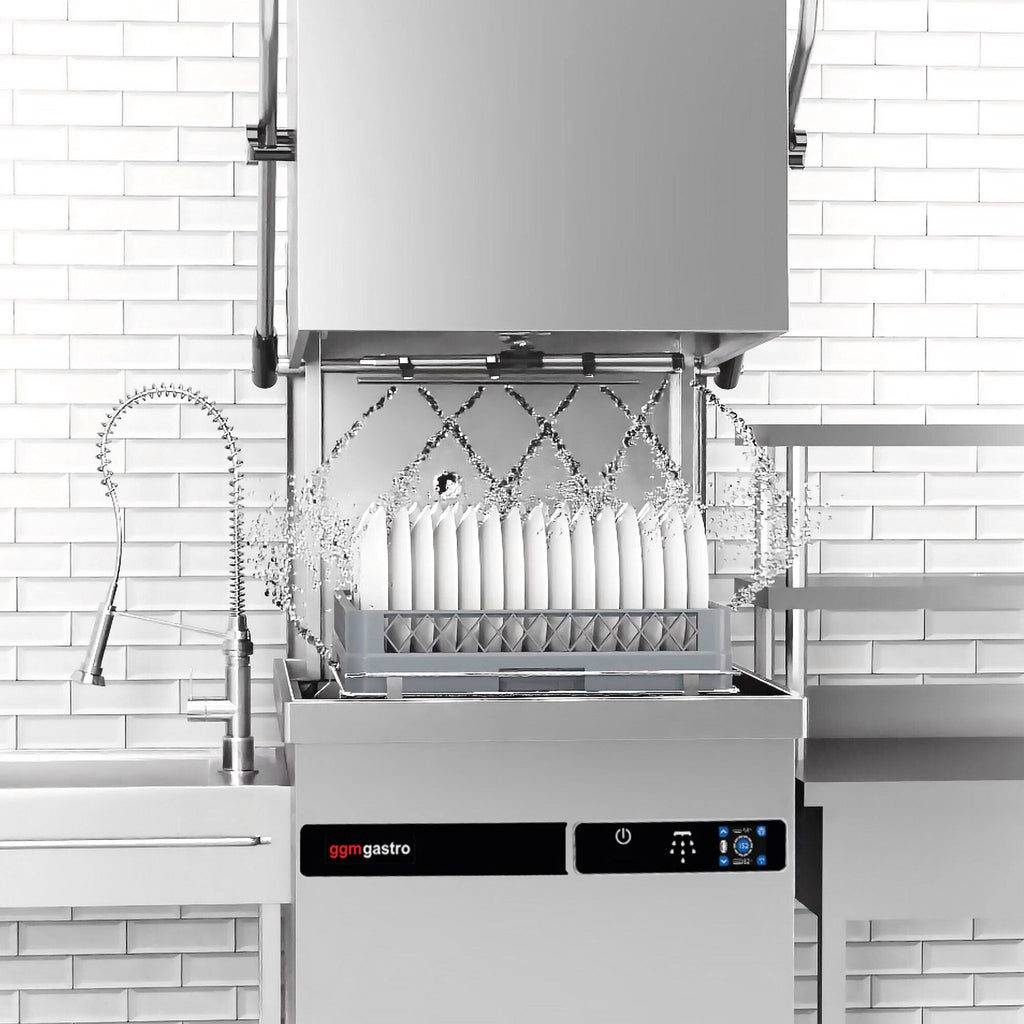

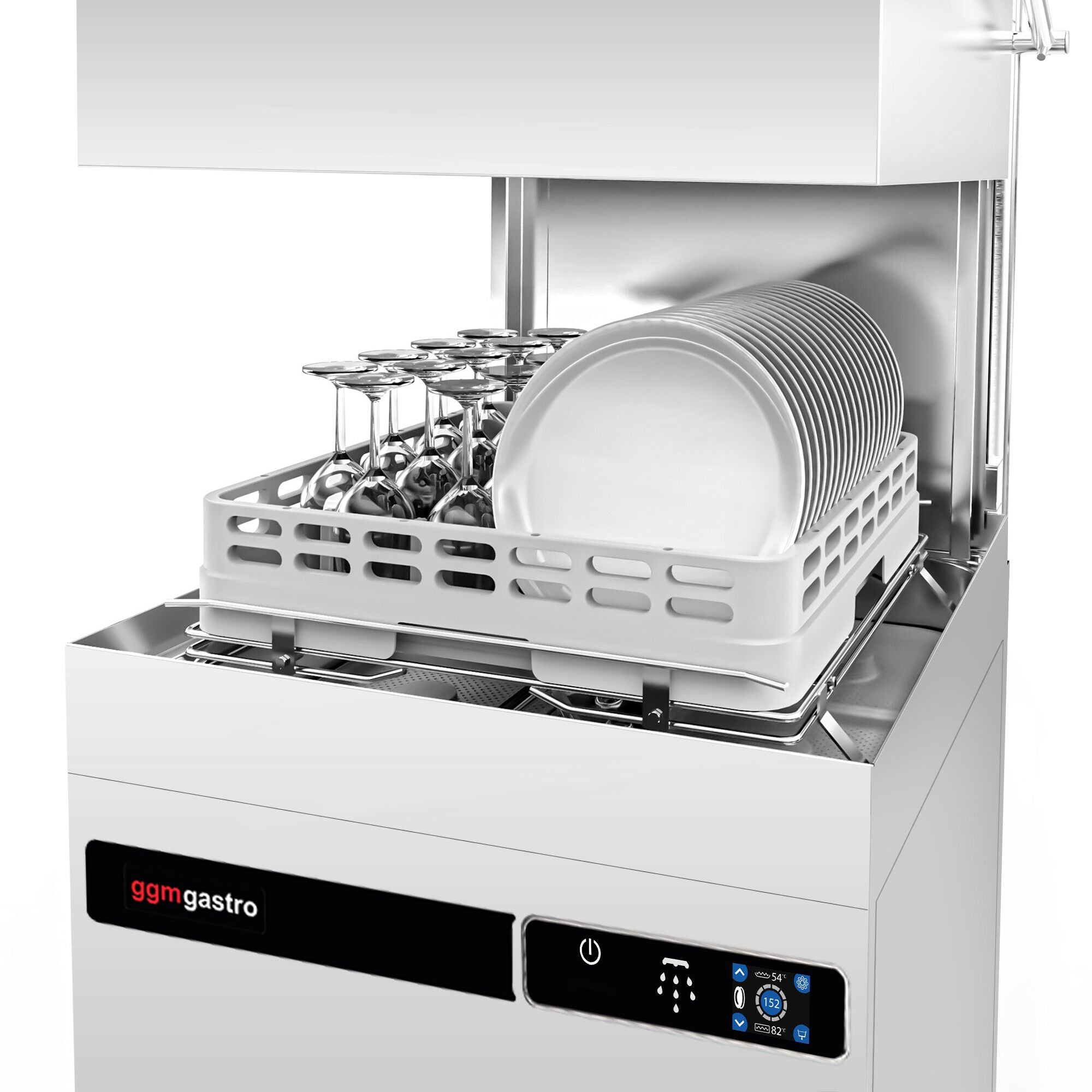

Current Type Dishwasher - 9,66 KW - Detergent & Evacuation Pump

Product Advantages

• Automatic detergent supply

• Automatic polishing feed

• High cleaning power

Design

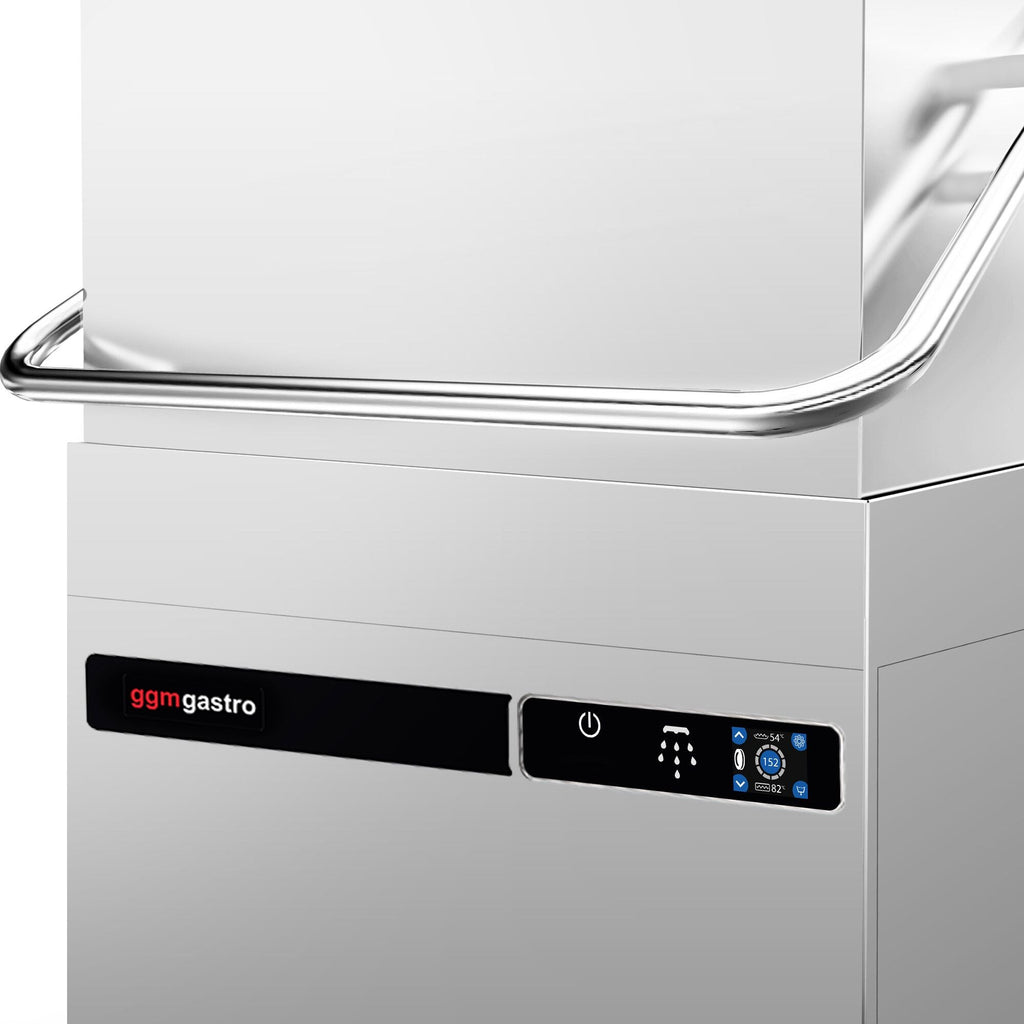

• Digital control panel

• Evacuation pump

• Detergent pump

• Electric rinse tap

• With drainage pump

• 2 propellers for effective cleaning

• 2 Rinsing Arms

• Thermostats for temperature control

• Height adjustable feet

Quality

• AISI 304 High Quality Stainless Steel Body

• Stainless steel heating element

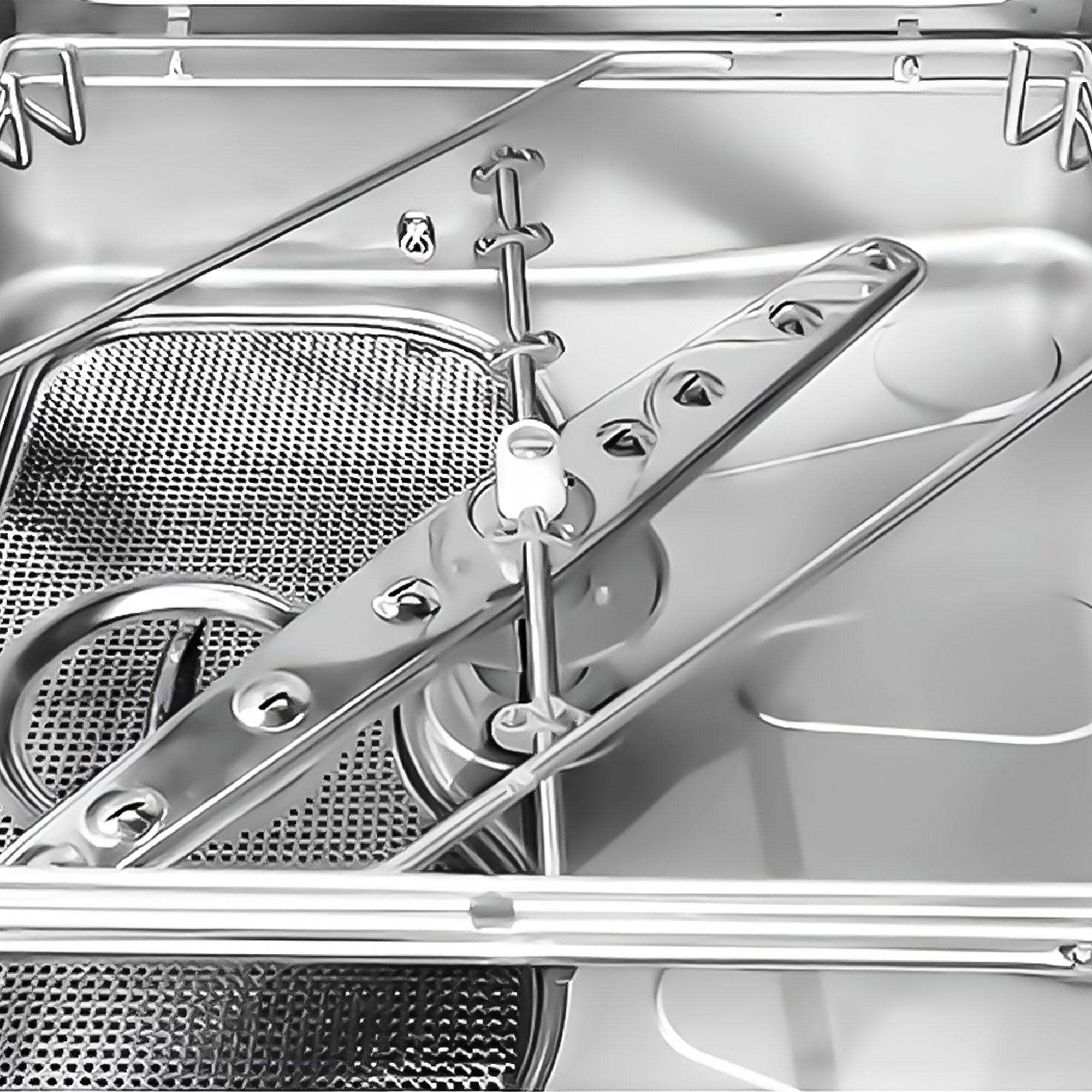

• Rotating, non -clogged washing arms

• Polypropylene washing arms

Rinsing process

• Ease of use:4 Program

• Rinsing Program I

• Rinsing Time: 60 Sekun

• Baskets/H: 60

• Rinsing Program II

• Rinsing Time: 90 Sekun

• Baskets/H: 40

• Rinsing Program III

• Rinsing Time: 120 Sekun

• Baskets/H: 30

• Rinsing Program IV

• Rinsing Time: 150 Sekun

• Baskets/H: 24

Product Advantages

• High cleaning power

• Excellent cleaning results

• The drainage pump pumps the waste water connection over the difference in height difference.

Connection

• Strength:9,66 kW

• Electrical connection:400V / 3N/PE / 50 Hz

Dimensions

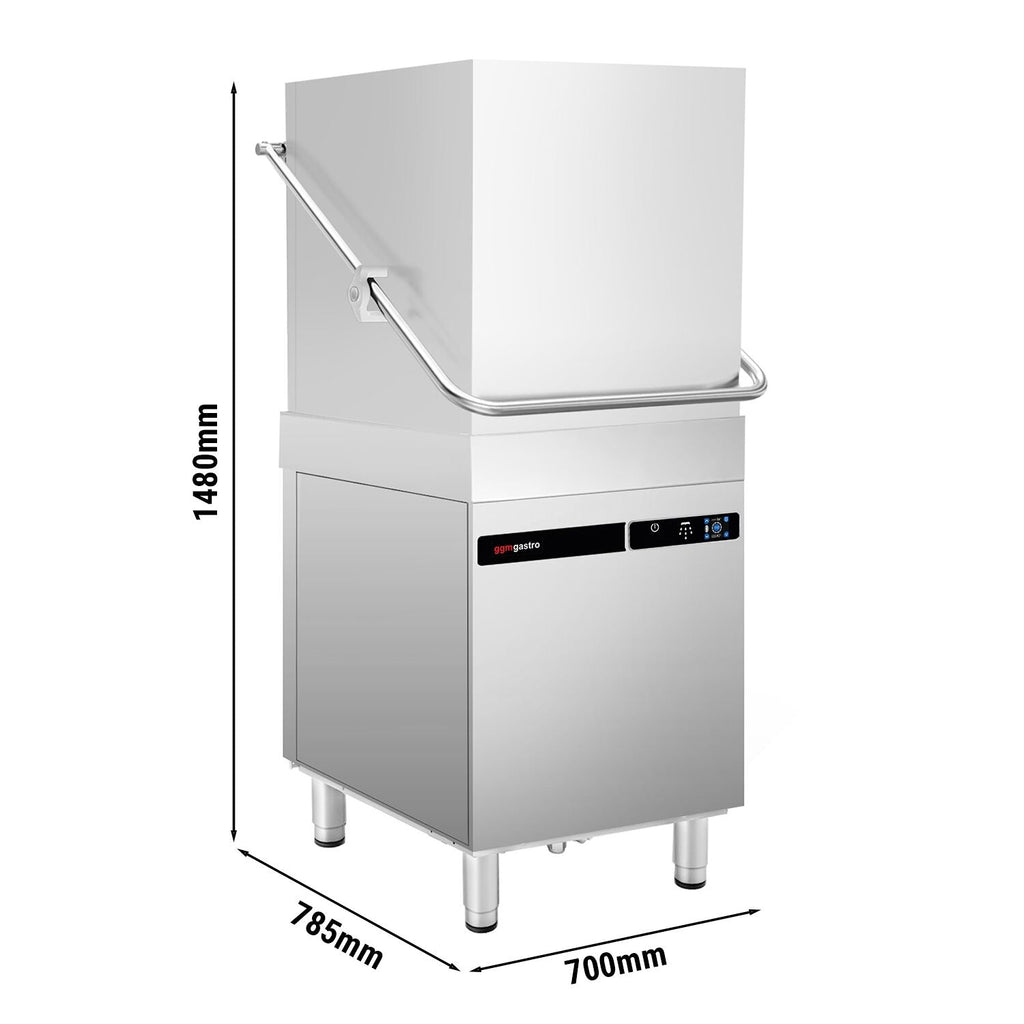

• External Dimensions (GXDXY):700 mm x 785 mm x 1.480 mm

Delivery Scope

• Plate basket

• Cup basket

• Fork knife basket

Directives

• It is produced in accordance with hygiene and safety rules.

• Produced in accordance with CE standards

Notes

• You can find information about network voltage in the user manual.

• RECOMMENDED HOT WATER CONNECTION

• Please note that this device is only suitable for chlorine -free cleaners.

• To provide proper rinsing, we recommend that you regularly purify the device and components from lime!

• If you have tied a lime solvent in the upward direction, remember that the cartridge should be renewed after about 1.50 L water flow. The real maximum flow rate depends on water hardness.
