Split Deep Freezer Unit - MAKS. For 20 m3 - Protection Class IP 51

Design

• Split Deep Freezer Unit

• Protection Class IP 51

• Condensation evacuation

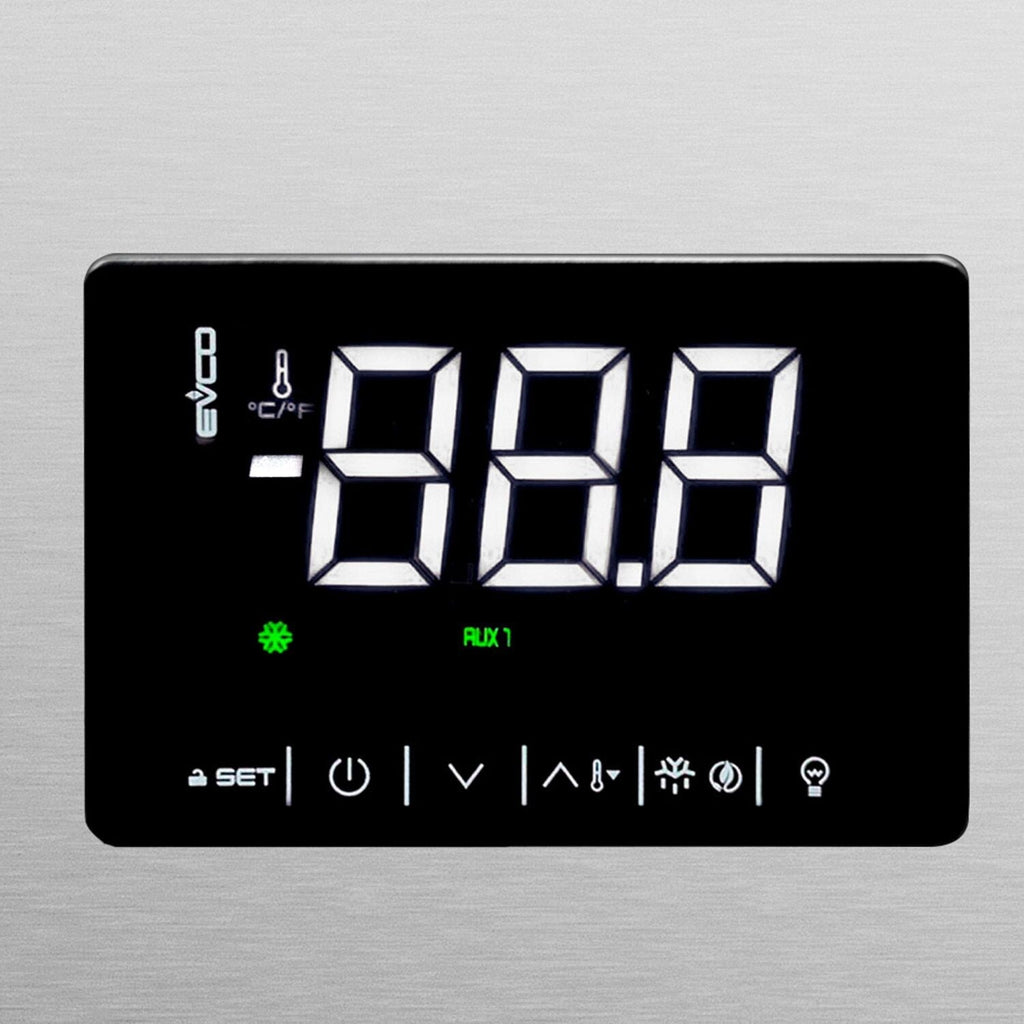

• EVCO Screen Electronic Control Unit

• Expansion with expansion valve

• Digital thermostat

• Easy installation

• Condensation water evacuation connection

• A separate assembly of the evaporator unit and the capacitor unit allows the transfer of heat and noise.

Quality

• Self -supported body (galvanized powder coated sheet)

• Copper Pipe and Aluminum Winged Heat Sauteor

• Thermal winding protected air -proof compressor

• Long use life

• It is quite hygienic thanks to its easy cleaning

Cooling

• Cooled

• Temperature range:-10 ° C ila -22 ° C

• Maximum Space Volume: 20 m³

• Cooler:R452a / 1.000 g

• Strong and continuous cooling

• Programmable automatic ice dissolution function through the controller

Connection

• Compressor power:497 Watt

• Electrical connection:3N/PE / 380V / 50 Hz

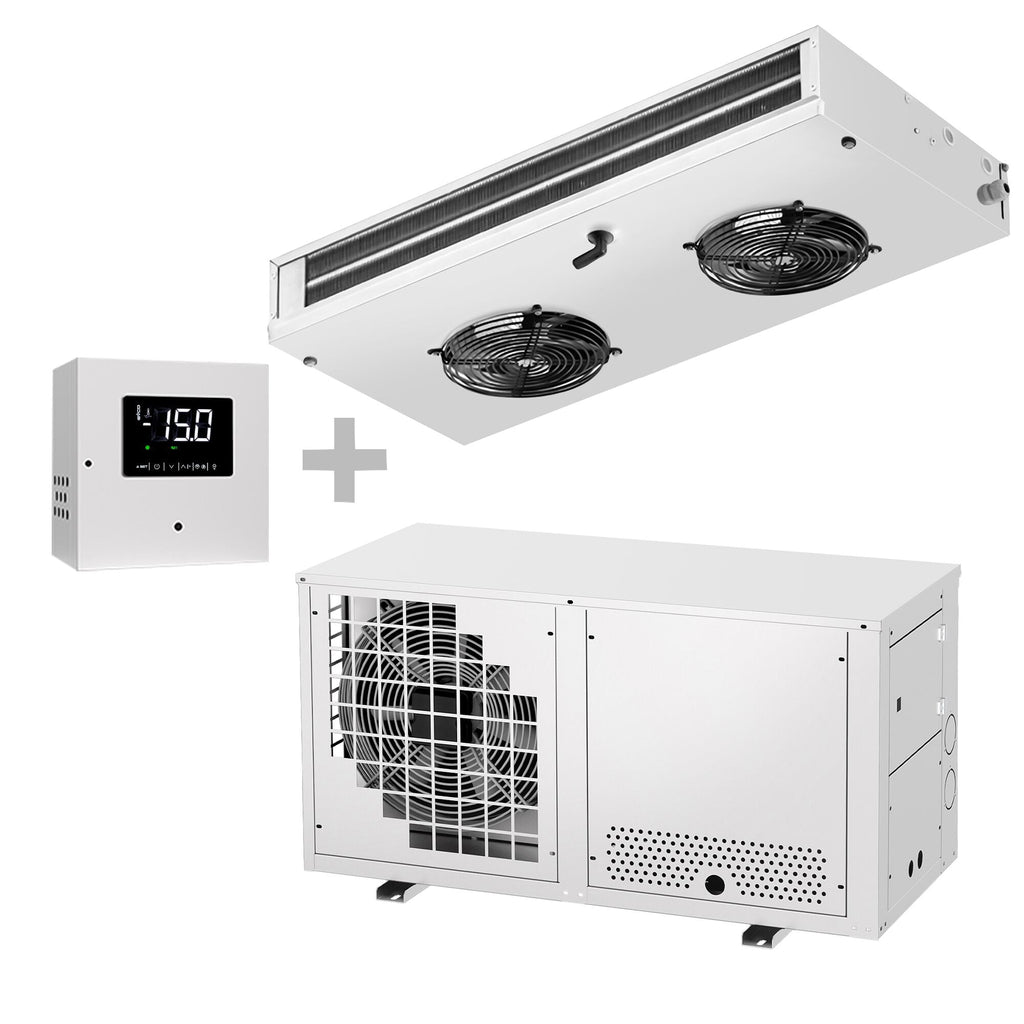

Delivery Scope

• Vaporizer

• Capacitor unit

• Electronic control

• 5m copper pipe

Dimensions

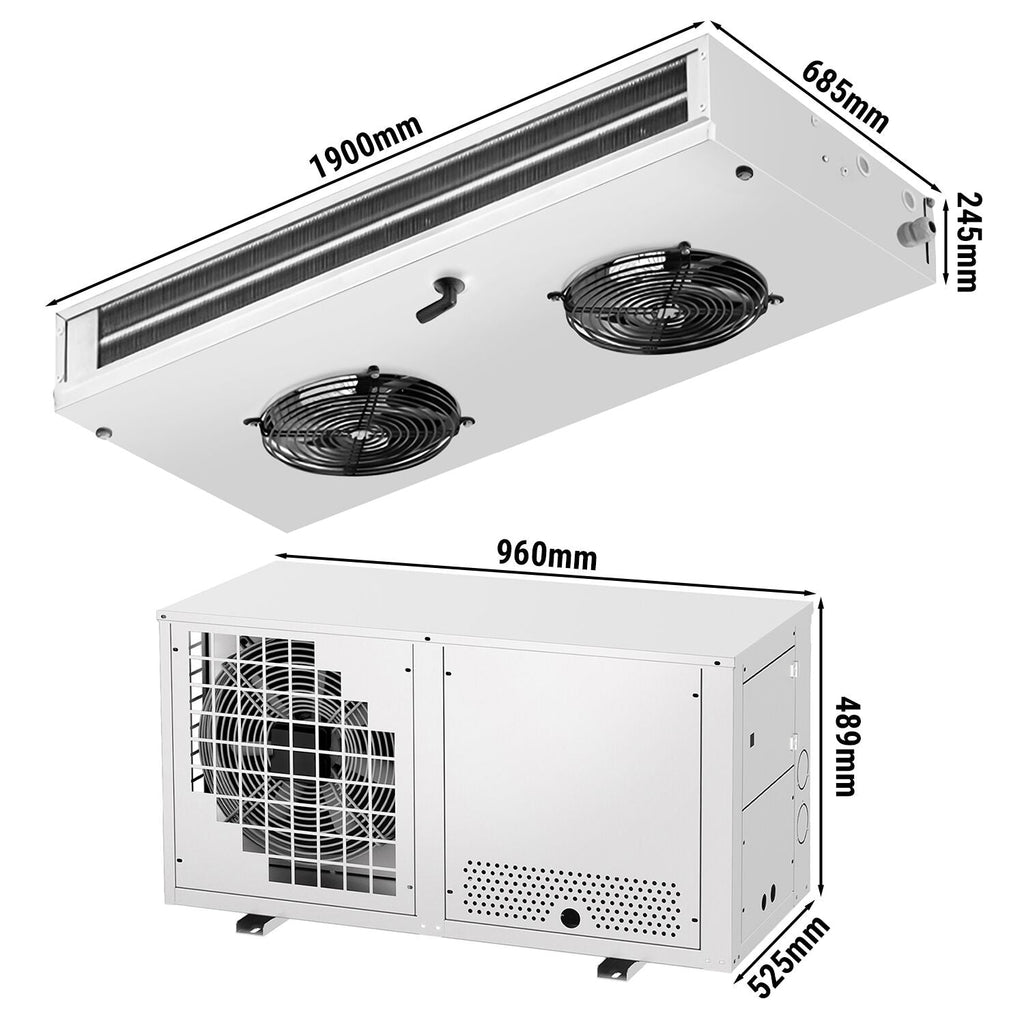

• External Size G: 1,900 mm

Notes

• Despite the IP 51 protection, we recommend a canopy for outdoor installation

Directives

• It is produced in accordance with hygiene and safety rules.

• Produced in accordance with CE standards

• Product is suitable for European food standards
